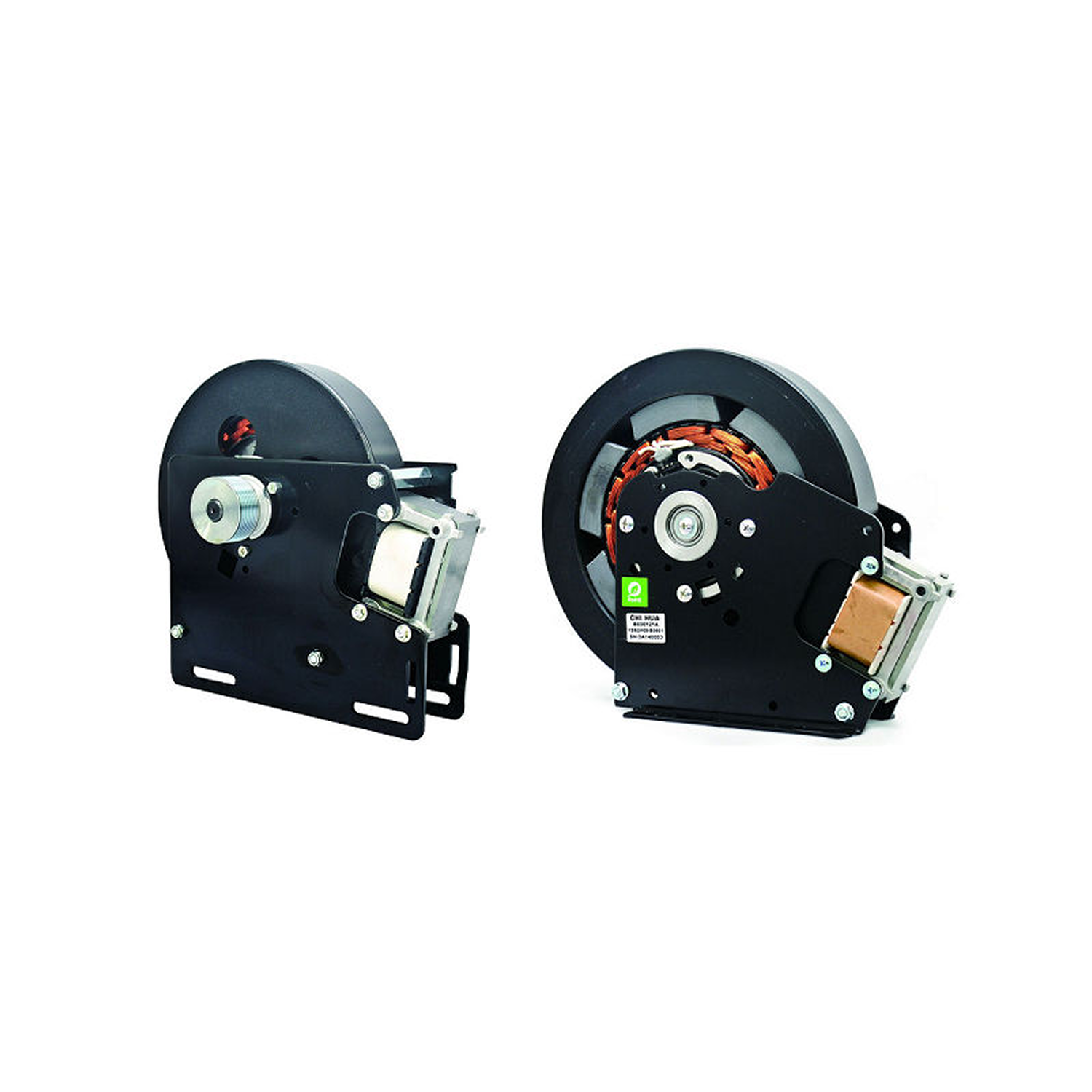

HYBRID GENERATOR BRAKE
型號 : FB6
系列 : FB6 Series
Self-powered (City power is not required)
Combination of Generator and Eddy current magnetic resistance
Maximum power can reach 350W at 60 pedal rpm for Single Transmission (1:8)
Easy start-up
Limited Temperature Rise
Minimal noise and vibration with low operation speed and current (1.8A Max)
Compact mechanical structure facilitates the assembly of the fitness equipment.
Flywheel OD: 177.3Ø, 186Ø, 215.4Ø, 215.4ØR, 242Ø, 242.7Ø, 242.7ØR
規格 Specification
Performance data
| Torque & Power | ||||||||
|
Current (A)
RPM (brake) |
0.0 | 0.4 | 0.8 | 1.2 | 1.6 | 2.0 | ||
| 600 | Torque (kg-cm) | 1.1 | 5.9 | 19.5 | 43.1 | 69.8 | 97.3 | |
| Power (Watts) | 7 | 36 | 120 | 266 | 430 | 600 | ||
| 800 | Torque (kg-cm) | 1.1 | 6.5 | 21.2 | 44.7 | 72.2 | 100.3 | |
| Power (Watts) | 9 | 53 | 174 | 367 | 593 | 824 | ||
| VI Curve of Generator | ||||||||
| 600 | I (AMP) | 0 | 0.34 | 0.45 | 0.65 | 1 | 1.6 | 3.7 |
| V (Voltage) | 116 | 101 | 98 | 92 | 81 | 64 | 0 | |
| 800 | I (AMP) | 0 | 0.44 | 0.59 | 0.85 | 1.3 | 2.05 | 4.5 |
| V (Voltage) | 155 | 135 | 129 | 120 | 106 | 82 | 0 | |
