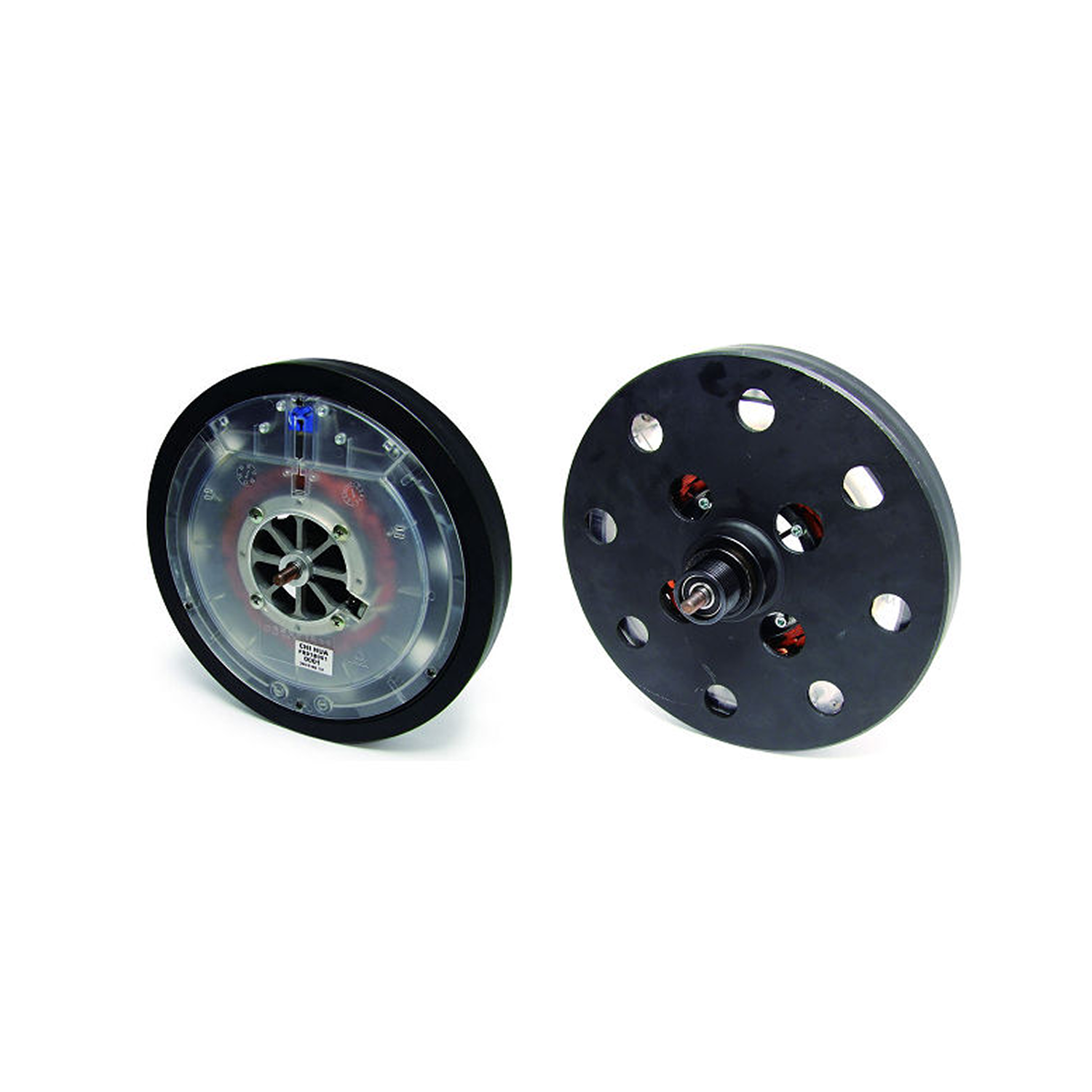

GREEN-ECB
型號 : FB9
系列 : FB9 Series
Self-powered by built-in power generator. (City power/Adaptor is not required)
High torque braking system at low rpm
Pancake design fits compact configuration.
Precise constant torque or constant power control
Performance specification:
Power output 12.7W/@ 400 brake rpm
Torque: > 77 kg-cm (398 watts) /@ 500 brake rpm
Gross weight: around 8.5 kgs.
273Ø flywheel to get Inertia Moment 0.08 kg-m²
Apply with lower board BLCB014 for proper application
規格 Specification
Performance data
| RPM (brake) | Torque (kg-cm) | Power (Watts) | ||
| Max | Min | Max | Min | |
| 500 | 77.5 | 8.9 | 398 | 46 |
| 600 | 88 | 9.9 | 542 | 61 |
| 700 | 95 | 11.2 | 683 | 81 |
| 800 | 102 | 11.9 | 838 | 98 |
| RPM (brake) | VI Curve of Generator | ||||||
| 500 | I (AMP) | 0 | 0.27 | 0.49 | 0.7 | 0.88 | 1.16 |
| V (Voltage) | 76.2 | 53.7 | 39.8 | 28.1 | 17.5 | 0 | |
| 600 | I (AMP) | 0 | 0.32 | 0.58 | 0.82 | 1.04 | 1.37 |
| V (Voltage) | 91 | 63.7 | 47.3 | 33.3 | 20.7 | 0 | |
| 700 | I (AMP) | 0 | 0.37 | 0.67 | 0.94 | 1.18 | 1.5 |
| V (Voltage) | 106 | 73.7 | 54.2 | 38 | 23.4 | 0 | |
| 800 | I (AMP) | 0 | 0.42 | 0.76 | 1.05 | 1.3 | 1.64 |
| V (Voltage) | 121 | 83.6 | 61.2 | 42.6 | 25.9 | 0 | |
